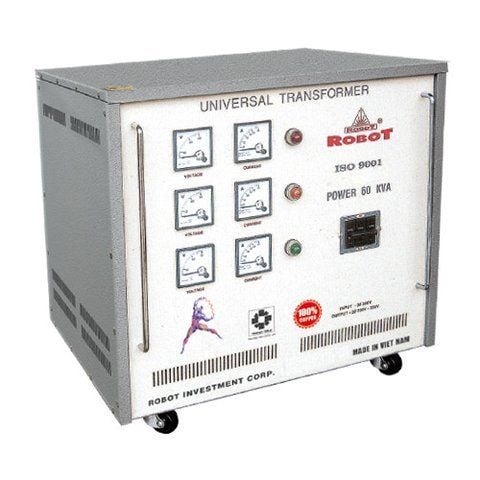

3 phase universal transformer (>100KVA) - Aluminium wire

SKU: UT3P100A
Giá gốc 32,000,000₫
  • Transformer is designed to applicable technology standard, full loading capacity.
  • Manufactured with silicon steel, incubated in processing with modern technology to the highest performance.
  • Use 100% copper wire or aluminium wire

Prev Next

  • Transformer is designed to applicable technology standard, full loading capacity.
  • Manufactured with silicon steel, incubated in processing with modern technology to the highest performance.
  • Use 100% copper wire or aluminium wire
  • Product: Universal transformer
  • Model: AP15 series (Aluminium wire)
  • Phase: 3 phase
  • Design power: 100KVA -500KVA
  • Input voltage: 380V, 415V or by special order
  • Output voltage: 200V - 220V or by special order
  • Frequency: 50Hz/ 60Hz.
  • Over load short circuit: Fuse / CB / MCB
  • Insutalion resistance: > 5MΩ at 500VDC
  • Dielectric strength: Test at 1500VAC/50Hz for 1 min.
  • Efficiency: ≥ 98%
  • Noise level: <=40dB
  • Ambient Temperature: 5 - 40oC
  • Relative Humidity: 20 - 90%
  • Warranty: 12 months

Design power

Dimensions

100 KVA

710 x 800 x 800 mm

120 KVA

710 x 800 x 800 mm

150 KVA

860 x 900 x 1065 mm

200 KVA

860 x 900 x 1065 mm

250 KVA

1110 x 800 x 965 mm

300 KVA

1110 x 800 x 965 mm

400 KVA

1510 x 1400 x 1765 mm

500 KVA

1510 x 1400 x 1765 mm







Read more
