Salient features
- Transformer is designed to applicable technology standard, full loading capacity.
- Manufactured with silicon steel, incubated in processing with modern technology to the highest performance.
- Use 100% copper wire or aluminium wire
Standout Features

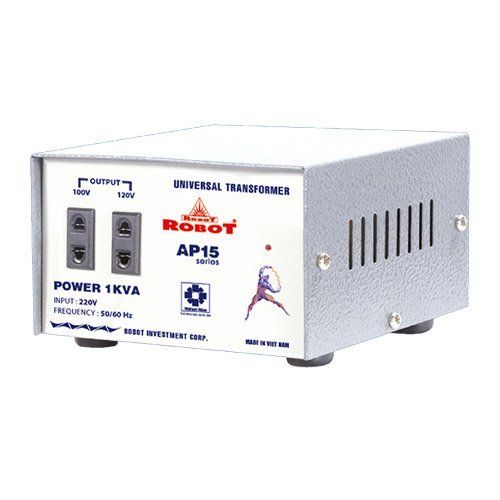

- Product:1 phase universal transformer
- Model: Classy series (100% copper wire)
- Phase: 1 phase
- Design power: 400VA, 600VA, 1KVA & 3KVA,
- Input voltage: 220V or by special order
- Output voltage: 100V - 120V or by special order
- Frequency: 50Hz/ 60Hz.
- Over load short circuit: Fuse / CB / MCB
- Insutalion resistance: > 5MΩ at 500VDC
- Dielectric strength: Test at 1500VAC/50Hz for 1 min.
- Efficiency: ≥ 98%
- Noise level: <=40dB
- Ambient Temperature: 5 - 40oC
- Relative Humidity: 20 - 90%
- Warranty: 12 months
-
Model
Design power
Dimensions
IT1P400
400VA
195 x 140 x 94 mm
IT1P600
600VA
220 x150 x 94 mm
IT1P1000
1KVA
240 x 175 x 110 mm
IT1P2000
3KVA
305 x 220 x 205 mm
