Techspec
Product code: RAW-23PCP
Purification stage number: 3 stages
Housing filter (Taiwan): 20”, ф 27mm tube
Filter (Vietnam): PP Sediment 5 microns, 1 micron & OCB
Dimension: 150x280x650 mm
Maximum purification capacity: 100 liters/hour
Standard water inlet temperature: < 40oC
Maximum pressure: 5.1 kg/cm2
Water inlet quality: treated tap water and drill well water
Outstanding advantages
Full set of Raw Housing Filter made in Taiwan, with NSF international
ertification
Multi-layer gasket seal design, minimize water leakage.
No need to use electricity
High performance continuous purification, no water tank
Saving operating costs
Easy to replace filter according to water source
Features
Purify the upstream water, increase the cleanliness of water before use, or integrated before the UF or R.O water purifier to protect the machine more durable, no clogging of the membrane.
Completely remove all residues, algae, mud,… in the water inlet larger than 5 microns
Deodorizes, creates the natural taste of water
Note
The maximum flow of PP 5 micron Filter is 100L/H with a pressure of 5.1 kg/cm2, in order for filter to function well, the water inlet must be sufficient, not weak
Filter replacement time: PP 5 microns Filter 4 – 6 months, OCB & PP 1 micron
ilter from 6 – 12 months (depending on the quality of water inlet and the used water flow)

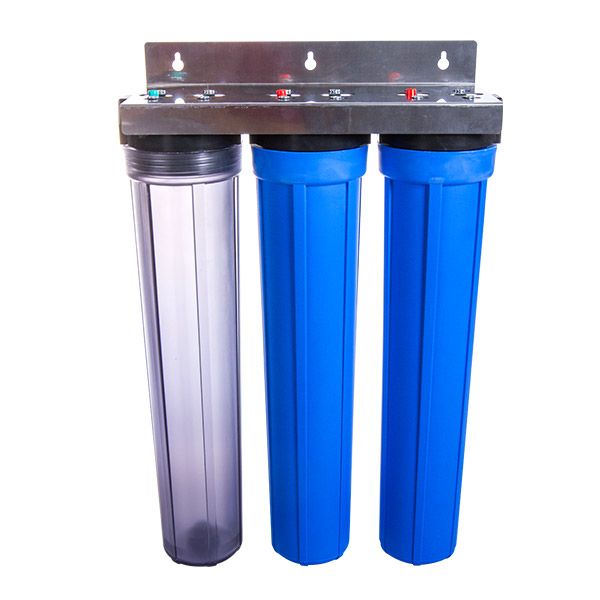

Raw Housing Filter No.1 uses transparent primary plastic for easy viewing and replacement of the PP 5 microns filter as soon as it is dirty
Need to replace genuine brand filter to ensure the quality of water used.
- Product code: RAW-23PCP
- Purification stage number: 3 stages
- Housing filter (Taiwan): 20”, ф 27mm tube
- Filter (Vietnam): PP Sediment 5 microns, 1 micron & OCB
- Dimension: 150x280x650 mm
- Maximum purification capacity: 100 liters/hour
- Standard water inlet temperature: < 40oC
- Maximum pressure: 5.1 kg/cm2
- Water inlet quality: treated tap water and drill well water
Outstanding advantages - Full set of Raw Housing Filter made in Taiwan, with NSF international
- ertification
- Multi-layer gasket seal design, minimize water leakage.
- No need to use electricity
- High performance continuous purification, no water tank
- Saving operating costs
- Easy to replace filter according to water source
Features - Purify the upstream water, increase the cleanliness of water before use, or integrated before the UF or R.O water purifier to protect the machine more durable, no clogging of the membrane.
- Completely remove all residues, algae, mud,… in the water inlet larger than 5 microns
- Deodorizes, creates the natural taste of water
Note - The maximum flow of PP 5 micron Filter is 100L/H with a pressure of 5.1 kg/cm2, in order for filter to function well, the water inlet must be sufficient, not weak
- Filter replacement time: PP 5 microns Filter 4 – 6 months, OCB & PP 1 micron
- ilter from 6 – 12 months (depending on the quality of water inlet and the used water flow)
- Raw Housing Filter No.1 uses transparent primary plastic for easy viewing and replacement of the PP 5 microns filter as soon as it is dirty
- Need to replace genuine brand filter to ensure the quality of water used.
