Salient features
- RENO Series 818 OPTIMIZED FOR ALL MOTORS.
- 100% Copper Transformers.
- Wide Voltage range from 1KVA -> 15KVA: 40V, 50V, 60V, 90V
- High durability, withstand high inrush current
- Stabilizer/ Grid electricity MCB Changeover swith
- Surge protection for devices with delay feature
- Overload, short circuit protection
Standout Features

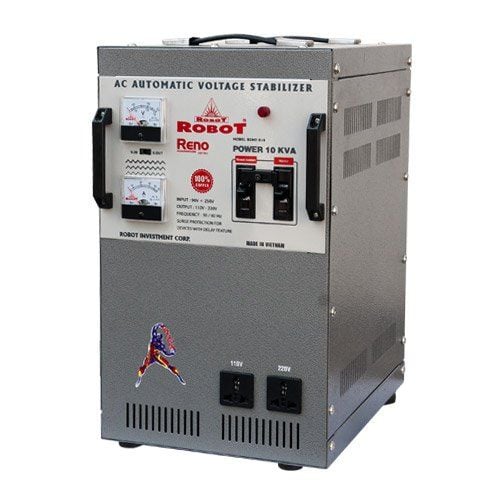

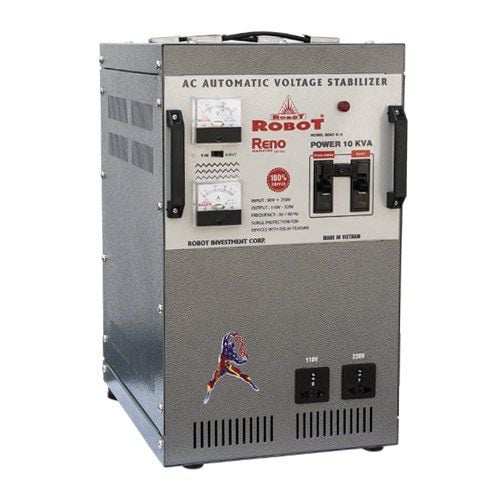

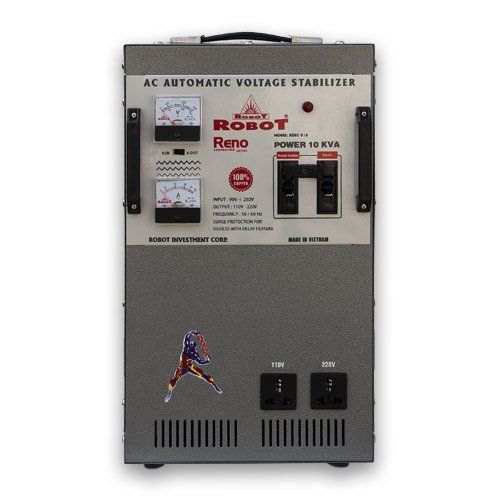

- Product: Automatic Voltage Stabilizer
- Model: Reno series 818 10KVA
- Phase: 1 phase
- Capacity: 10KVA
- Input Voltage range
+ 150V ÷ 250V
+ 90V ÷ 250V
+ 60V ÷ 240V
+ 40V ÷ 240V - Output Voltage: 110V-220V (±2 ~ 3%)
- Changeover circuit breaker
- Initial Output Delay
- Autoreset, wide range stabilizers

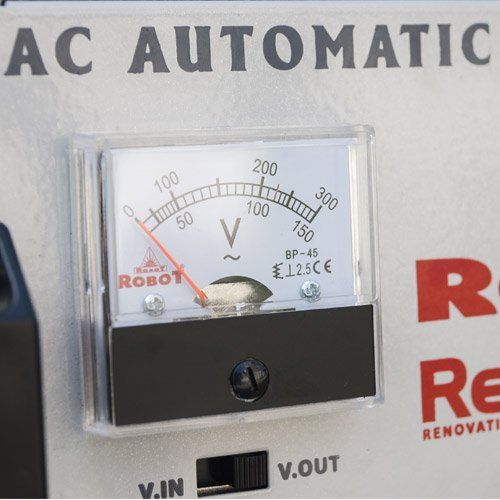

- Display: Lamp out, Standby/Overload, Volt out, Volt in + Amp (>= 3KVA)
- Output Voltage: Detail information in each product section
- Frequency: 50Hz/ 60Hz.
- Insutalion resistance: > 5MΩ at 500VDC
- Dielectric strength: Test at 1500VAC/50Hz for 1 min.
- Efficiency: ≥ 98% (be able changed following input)
- Noise level: <=40dB
- Ambient Temperature: 5 - 40oC
- Relative Humidity: 20 - 90%
- Warranty: 12 months
| Input Voltage | Dimensions (mm) |
| 150V ÷ 250V | 380 x 275 x 460 |
| 90V ÷ 250V | 420 x 285 x 495 |
| 60V ÷ 240V | 490 x 320 x 570 |
| 40V ÷ 240V | 490 x 320 x 570 |
