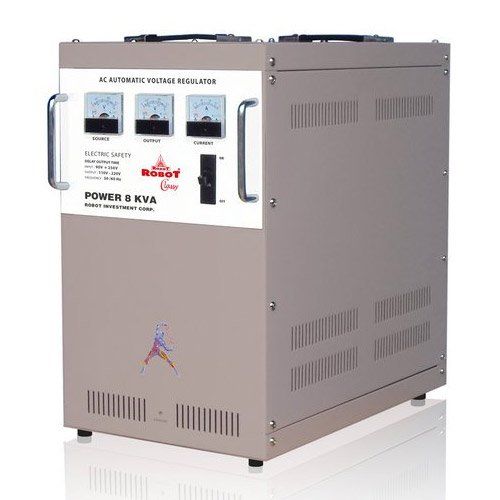

1 Phase Classy 8KVA

Type: Classy
SKU: CL8K130-270
Giá gốc 6,150,000₫
  • 100% Copper Transformers.
  • Wide Voltage range from 5KVA -> 10KVA: 50V - 250V,
  • High durability, withstand high inrush current
  • Stabilizer/ Grid electricity MCB Changeover swith
  • Surge protection for devices with delay feature
  • Display meters for input/ouput/on-load curent
  • Overload, short circuit protection

Prev Next

  • 100% Copper Transformers.
  • Wide Voltage range from 5KVA -> 10KVA: 50V - 250V,
  • High durability, withstand high inrush current
  • Stabilizer/ Grid electricity MCB Changeover swith
  • Surge protection for devices with delay feature
  • Display meters for input/ouput/on-load curent
  • Overload, short circuit protection
  • Product: 1 Phase Voltage Classy Series
  • Phase: 1 phase
  • Capacity: 8KVA
  • Input Voltage range 150V ÷ 250V
  • Output Voltage: 110 - 220V (±2 ~ 3%)
  • Control system: servo motor
  • Response speed: 2-5V/sec
  • Display: Lamp out, Standby/Overload, Volt out, Volt in + Amp (>= 3KVA)
  • Output Voltage: Detail information in each product section
  • Frequency: 50Hz/ 60Hz.
  • Insutalion resistance: > 5MΩ at 500VDC
  • Dielectric strength: Test at 1500VAC/50Hz for 1 min.
  • Efficiency: ≥ 98% (be able changed following input)
  • Noise level: <=40dB
  • Ambient Temperature: 5 - 40oC
  • Relative Humidity: 20 - 90%
  • Warranty: 12 months
  • Dimension: 440 x 280 x 445mm & 540 x 315 x 495mm
