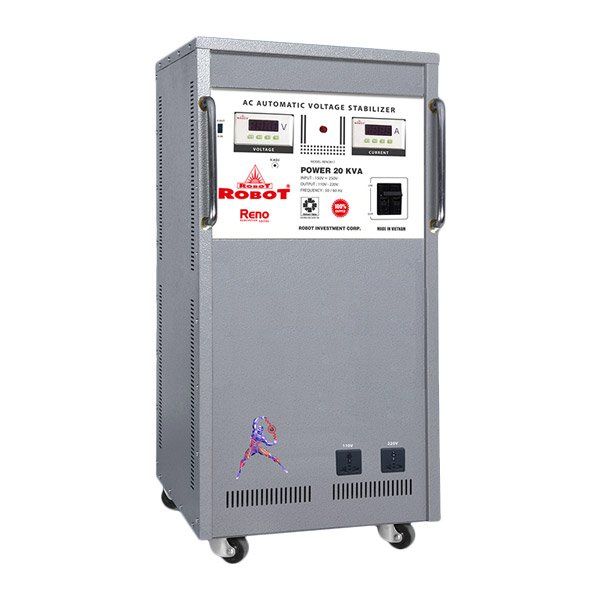

1 phase Reno 817 20KVA

Type: Reno 817
SKU: RE20K817-150
Giá gốc 15,500,000₫
  • RENO Series 817 OPTIMIZED FOR ALL MOTORS.
  • 100% Copper Transformers.
  • Wide Voltage range
  • High durability, withstand high inrush current
  • Display meters for input/ output/ on-load current
  • Stabilizer/ Grid electricity MCB Changeover swith
  • Surge Protection for Devices with Delay Feature

Prev Next

  • RENO Series 817 OPTIMIZED FOR ALL MOTORS.
  • 100% Copper Transformers.
  • Wide Voltage range
  • High durability, withstand high inrush current
  • Display meters for input/ output/ on-load current
  • Stabilizer/ Grid electricity MCB Changeover swith
  • Surge Protection for Devices with Delay Feature
  • Product: Automatic Voltage Stabilizer
  • Model: Reno series 817 20KVA (RE20K817)
  • Phase: 1 phase
  • Capacity: 20KVA
  • Input Voltage range
       + 150V ÷ 250V
       + 90V ÷ 250V
       + 60V ÷ 240V
       + 40V ÷ 240V
  • Output Voltage: 110V-220V (±2 ~ 3%)
  • Frequency: 50Hz/ 60Hz.
  • Delay: 2-5V/sec
  • Full protection: Overload short circuit protection ACB/ MCB/ CB
  • Insutalion resistance: > 5MΩ at 500VDC
  • Efficiency: ≥ 98%
  • Ambient Temperature: 5 - 40oC
  • Relative Humidity: 20 - 90%
  • Display: Amp metter; Volt in/ out meter (Analog & Digital), Lamp out, Stanby/ Over voltage
  • Warranty: 12 months
  • Dimensions: 610 x 440 x 760mm (*)
