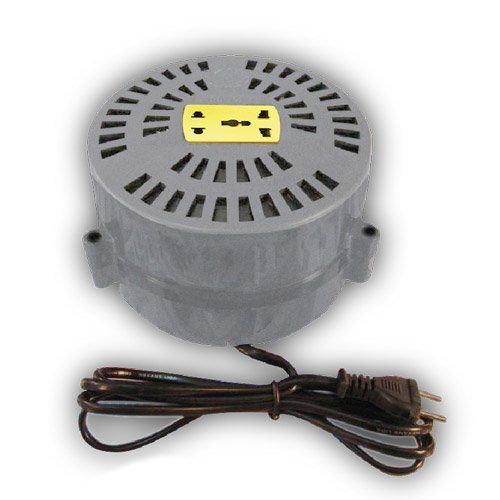

Round transformer (Copper wire)

Mã sản phẩm: RT1P1000C
Giá gốc 790,000₫
  • Transformer is designed to applicable technology standard, full loading capacity.
  • Manufactured with silicon steel, incubated in processing with modern technology to the highest performance.
  • Use 100% copper wire or aluminium wire

← Sản phẩm trước Sản phẩm sau →

  • Transformer is designed to applicable technology standard, full loading capacity.
  • Manufactured with silicon steel, incubated in processing with modern technology to the highest performance.
  • Use 100% copper wire or aluminium wire
  • Product: Round transfomrer
  • Model: Classy series (100% copper wire)
  • Phase: 1 phase
  • Design power: 1KVA, 1.25KVA, 1.5KVA & 2KVA,
  • Input voltage: 220V or by special order
  • Output voltage: 100V - 120V or by special order
  • Frequency: 50Hz/ 60Hz.
  • Over load short circuit: Fuse / CB / MCB
  • Insutalion resistance: > 5MΩ at 500VDC
  • Dielectric strength: Test at 1500VAC/50Hz for 1 min.
  • Efficiency: ≥ 98%
  • Noise level: <=40dB
  • Ambient Temperature: 5 - 40oC
  • Relative Humidity: 20 - 90%
  • Warranty: 12 months
  • Dimension: 230 x 230 x 180mm
