Salient features
- Robot AC automatic voltage stabilizer 3 phase Renovation series
- 100% Copper Transformers.
- Wide voltage range from 3KVA -> 100KVA or by special order
- Auto equalized phase, suitable to unstable voltage areas.
- Control system use servo motor
- High durability, withstand high inrush current
- Stabilizer/ Grid electricity MCB Changeover swith
- Overload, short circuit protection
Standout Features

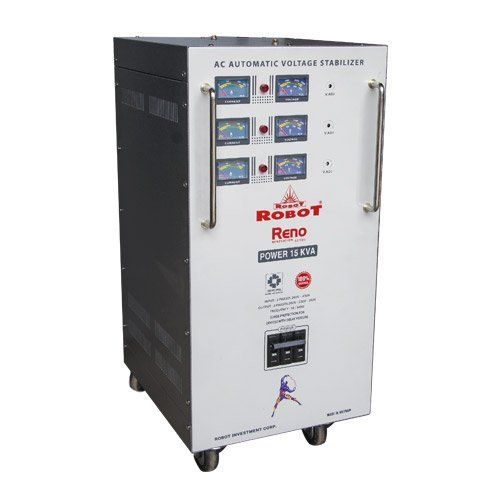

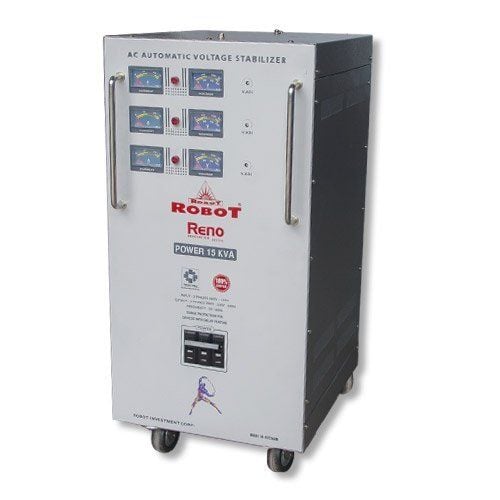

- Product: Automatic Voltage Stabilizer
- Model: Reno series
- Phase: 3 phase
- Capacity: 15KVA
- Input voltage
+ 260V ÷ 430V
+ 160V ÷ 430V - Output voltage: 200V - 220V - 380 (±2 ~ 3%)
- Digital meter: All kinds of big capacity machine (from 45KVA)

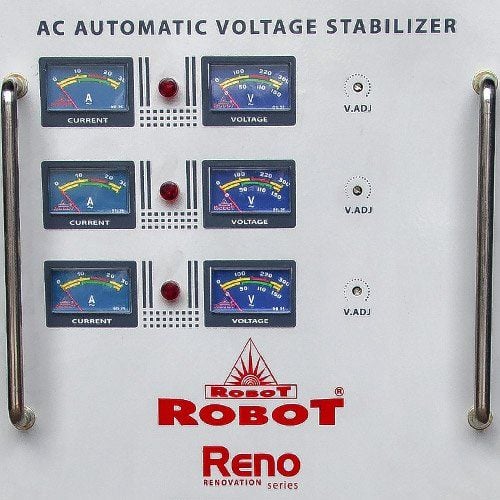

- Display: Amp, Volt out, Lamp out, Standby/Overload
- Frequency: 50Hz/ 60Hz.
- Response speed: 2-5V/sec
- Insutalion resistance: > 5MΩ at 500VDC
- Dielectric strength: Test at 1500VAC/50Hz for 1 min.
- Efficiency: ≥ 98% (be able changed following input)
- Noise level: <=40dB
- Ambient Temperature: 5 - 40oC
- Relative Humidity: 20 - 90%
- From 3KVA - 45KVA: Delay feature for 380V output (5 seconds) Overvoltage protection by electrical circuit, Overload protection by circuir breaker, From 60KVA or larger overvoltage and overload protection by circuit breaker.
- Warranty: 12 months
- Dimension: 490 x 365 x 750mm
