Salient features
- 100% Copper Transformers.
- Wide Voltage range from 5KVA -> 12.5KVA: 140V, 90V
- High durability, withstand high inrush current
- Stabilizer/ Grid electricity MCB Changeover swith
- Surge protection for devices with delay feature
Standout Features

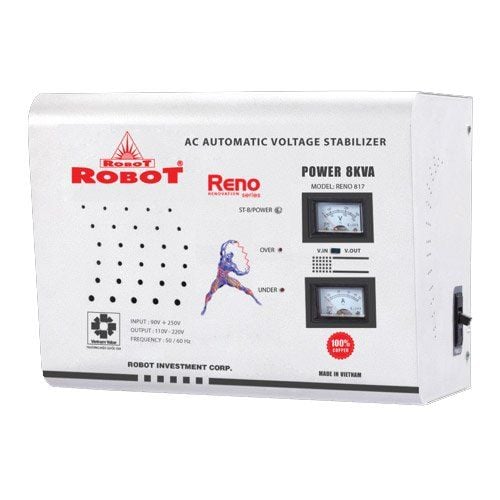

- Product: Suspending Wall Voltage Stabilizer
- Phase: 1 phase
- Capacity: 8KVA
- Input Voltage range
+ 150V ÷ 250V
+ 90V ÷ 250V - Output Voltage: 110V-220V (±2 ~ 3%)
- Control system: servo motor
- Response speed: 2-5V/sec
- Display: Lamp out, Standby/Overload, Volt out, Volt in + Amp (>= 3KVA)
- Output Voltage: Detail information in each product section
- Frequency: 50Hz/ 60Hz.
- Insutalion resistance: > 5MΩ at 500VDC
- Dielectric strength: Test at 1500VAC/50Hz for 1 min.
- Efficiency: ≥ 98% (be able changed following input)
- Noise level: <=40dB
- Ambient Temperature: 5 - 40oC
- Relative Humidity: 20 - 90%
- Warranty: 12 months
- Dimension: 400 x 330 x 225mm & 480 x 400 x 265mm
