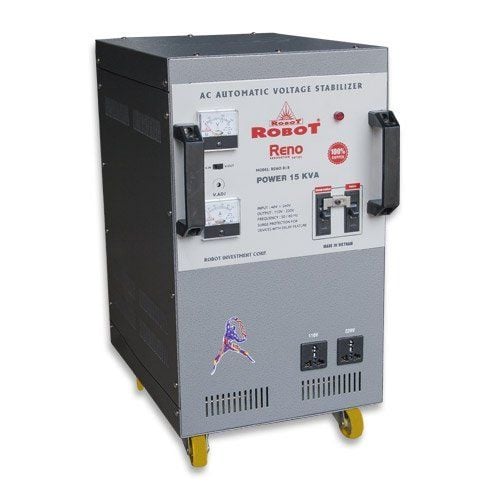

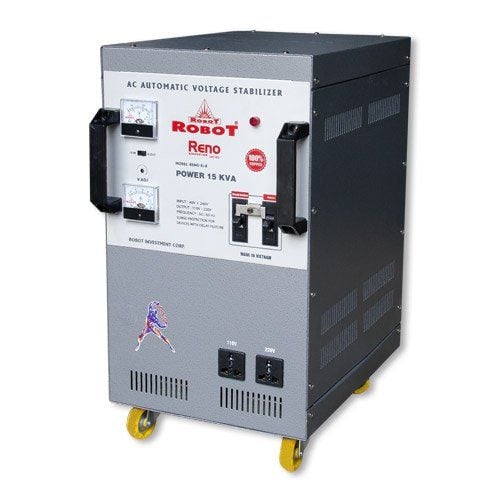

1 phase Reno 818 15KVA

Type: Reno 818
SKU: RE15K818-150
Giá gốc 10,300,000₫
  • RENO Series 818 OPTIMIZED FOR ALL MOTORS.
  • 100% Copper Transformers.
  • Wide Voltage range from 1KVA -> 15KVA: 40V, 50V, 60V, 90V
  • High durability, withstand high inrush current
  • Stabilizer/ Grid electricity MCB Changeover swith
  • Surge protection for devices with delay feature
  • Overload, short circuit protection

Prev Next

  • RENO Series 818 OPTIMIZED FOR ALL MOTORS.
  • 100% Copper Transformers.
  • Wide Voltage range from 1KVA -> 15KVA: 40V, 50V, 60V, 90V
  • High durability, withstand high inrush current
  • Stabilizer/ Grid electricity MCB Changeover swith
  • Surge protection for devices with delay feature
  • Overload, short circuit protection
  • Product: Automatic Voltage Stabilizer
  • Model: Reno series 818 15KVA
  • Phase: 1 phase
  • Capacity: 15KVA
  • Input Voltage range
       + 150V ÷ 250V
       + 90V ÷ 250V
       + 60V ÷ 240V
       + 40V ÷ 240V
  • Output Voltage: 110V-220V (±2 ~ 3%)
  • Changeover circuit breaker
  • Control system: servo motor
  • Response speed: 2-5V/sec
  • Initial Output Delay
  • Autoreset, wide range stabilizers
  • Display: Lamp out, Standby/Overload, Volt out, Volt in + Amp (>= 3KVA)
  • Output Voltage: Detail information in each product section
  • Frequency: 50Hz/ 60Hz.
  • Insutalion resistance: > 5MΩ at 500VDC
  • Dielectric strength: Test at 1500VAC/50Hz for 1 min.
  • Efficiency: ≥ 98% (be able changed following input)
  • Noise level: <=40dB
  • Ambient Temperature: 5 - 40oC
  • Relative Humidity: 20 - 90%
  • Warranty: 12 months
  • Dimension: 490 x 320 x 570mm *
